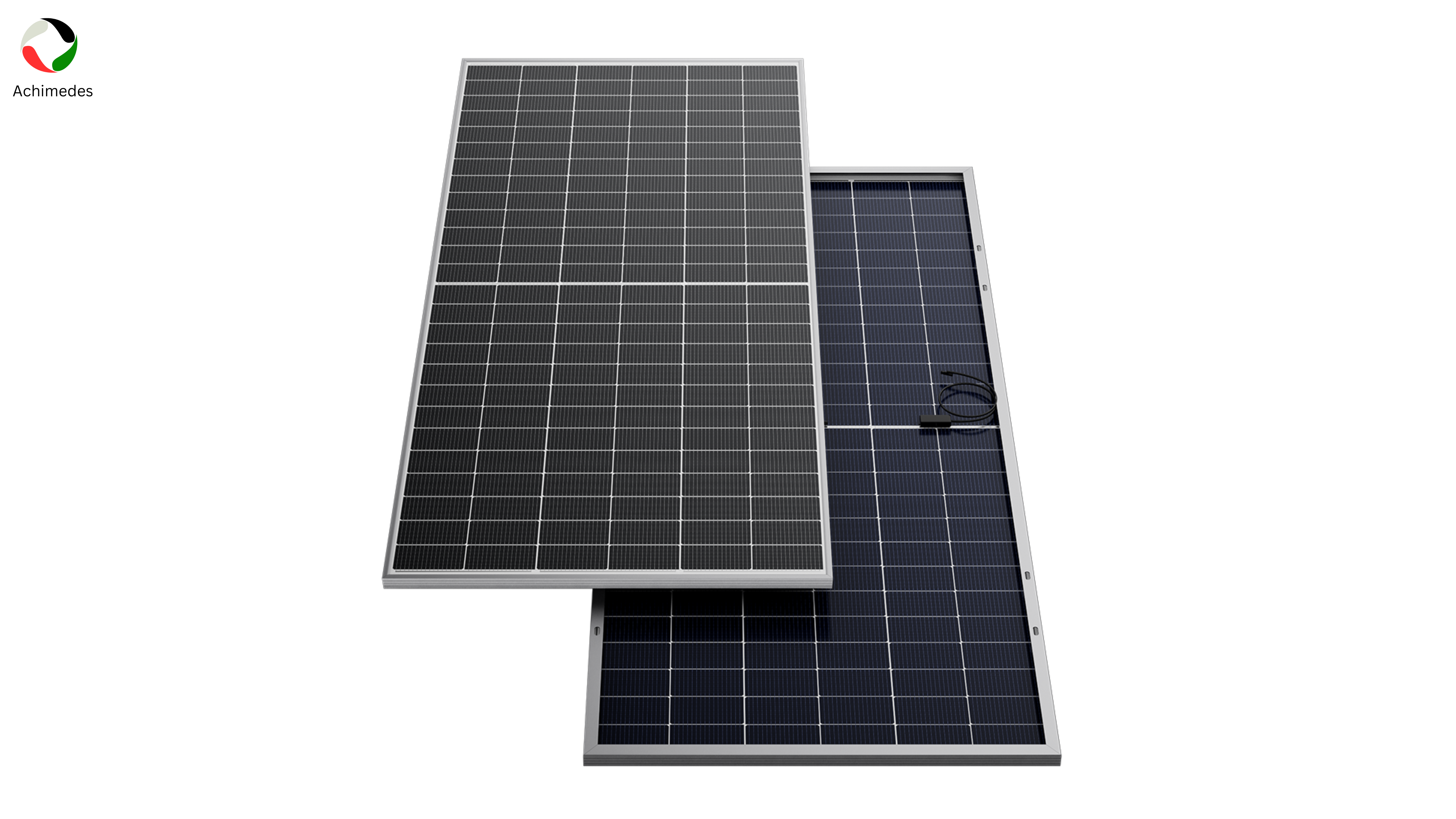

Arc Cell 5N-Series 615 - 640 Watt
Cells Layout
156 Half Cells (6×26)
Dimensions
2465 x 1134 x 30/35mm
Max. Efficiency
22.54%
Design
Silver / Black frame
Dual glass / Glass & backsheet
Technology
TOPCon, bifacial, MBB, half cell
Operating Temperature
-40 – +85°C
Warranty
30-year performance guarantee
Certificates
CE / TUV / UL

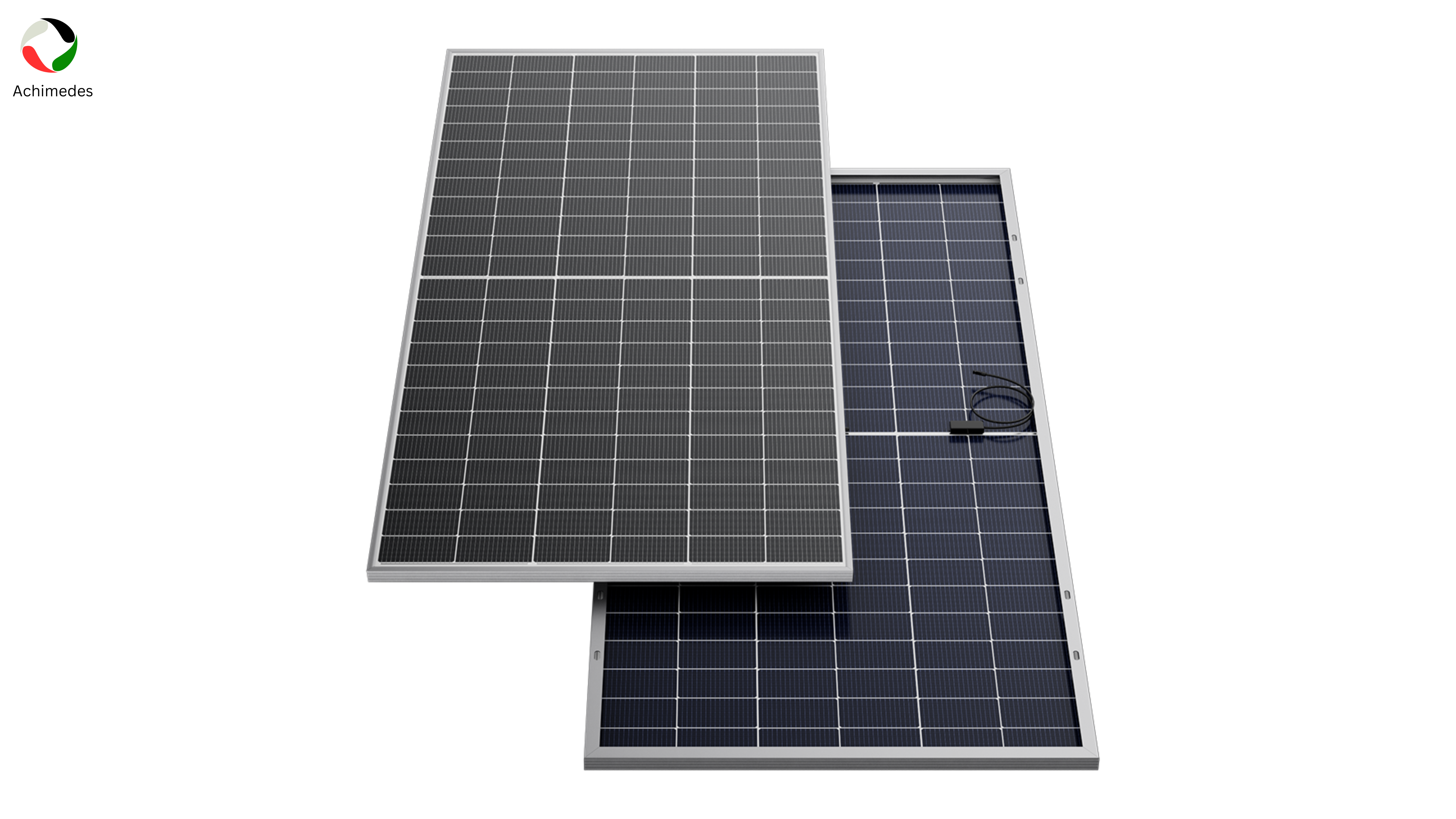

Arc Cell 5N-Series 565 - 600 Watt
Cells Layout
144 Half Cells (6×24)
Dimensions
2279 x 1134 x 30/35mm
Max. Efficiency
22.44%
Design
Silver / Black frame
White / Black backsheet
Technology
HJT/TOPCon, bifacial, MBB, half cell
Operating Temperature
-40 – +85°C
Warranty
30-year performance guarantee
Certificates
CE / TUV / UL

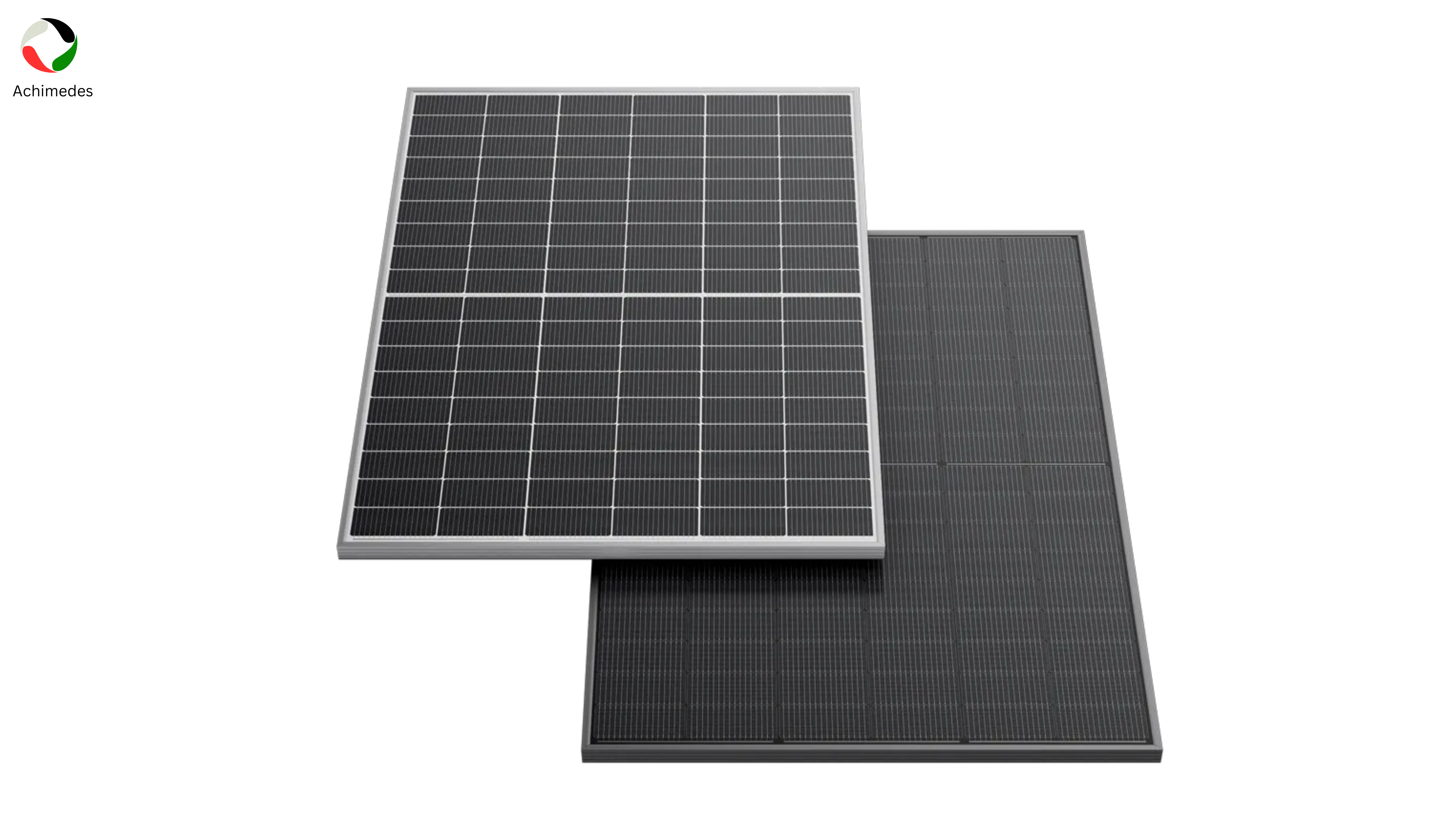

Arc Cell 5N-Series 515 - 540 Watt
Cells Layout
132 Half Cells (6×22)
Dimensions
2094 x 1134 x 30/35mm
Max. Efficiency
22.32%
Design
Silver / Black frame
Dual glass / Glass & backsheet
Technology
TOPCon, bifacial, MBB, half cell
Operating Temperature
-40 – +85°C
Warranty
30-year performance guarantee
Certificates
CE / TUV / UL
Arc Cell 5N-Series 465 - 500 Watt
Cells Layout
120 Half Cells (6×20)
Dimensions
1910 x 1134 x 30/35mm
Max. Efficiency
22.39%
Design
Silver / Black frame
White / Black backsheet
Technology
HJT/TOPCon, bifacial, MBB, half cell
Operating Temperature
-40 – +85°C
Warranty
30-year performance guarantee
Certificates
CE / TUV / UL
Arc Cell 5N-Series415 - 450 Watt
Cells Layout
108 Half Cells (6×18)
Dimensions
1722 x 1134 x 30/35mm
Max. Efficiency
22.28%
Design
Silver / Black frame
Dual glass / Glass & backsheet
Technology
HJT/TOPCon, bifacial, MBB, half cell
Operating Temperature
-40 – +85°C
Warranty
30-year performance guarantee
Certificates
CE / TUV / UL
